Product Classification

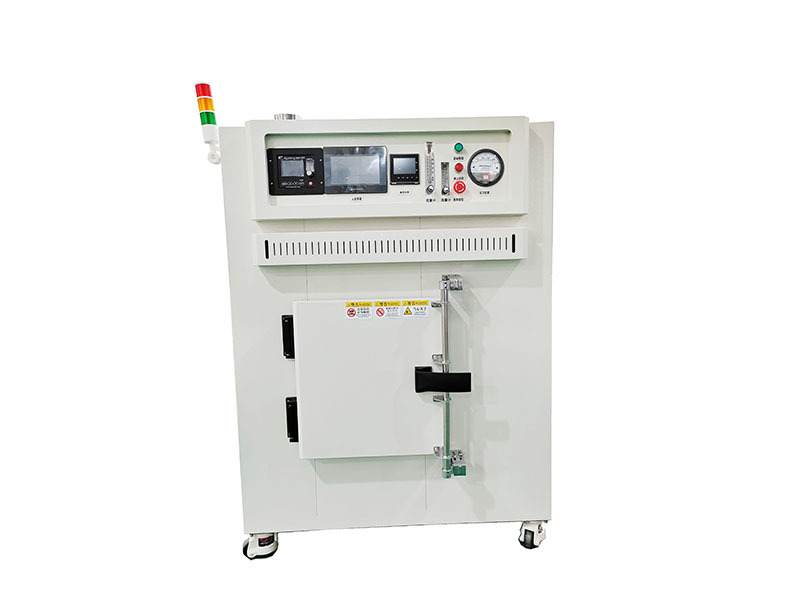

Smart oven
Internal dimensions: D600×W800×H1300mm
Product model: AMST-620H
hiddenValue
- Description
-
AMST-Product Description
Smart Oven/Bakery Overview: This drying oven equipment adopts hot air circulation heating, the standard is 250 degrees (optional 300 degrees, 400 degrees, 500 degrees). It can also be customized according to customer baking requirements, precision hot air circulation ovens, pressure relief industrial ovens, non-oxidizing hot air ovens, dust-free clean industrial ovens, hot air conveying dryers, workshop assembly line oven drying equipment, etc.!
Application of intelligent oven: Industrial LED photoelectric oven can meet the baking requirements of various industrial product processes. Such as dehumidification and drying of SMD, PLED polymer, crystal EL quartz oscillator, PCB printed circuit board, FPC flexible circuit board, etc. in the electronic manufacturing industry, gluing, painting, drying after coloring, washing and drying after electroplating, ink drying, resin curing, printing drying, plastic coating, hybrid circuit glue injection, IC packaging, ceramic capacitors, heat shrink film, rubber vulcanization, ballast, transformer varnish, motor coil varnish drying, curing, etc.
AMST-Main Parameters
Temperature parameters:Temperature range: RT-250℃ fixed point adjustable (300℃/400℃/500℃ optional)
Temperature control range: ±1℃
Heating rate: RT-100℃ about 20min
★Model specifications:Model: AMST-620H
Volume: 620L
Internal dimensions: D600*W800*H1300 (depth*width*height mm)
★Structure and materials:
Shell material: Environmentally friendly self-drying electrostatic powder spraying or baking paint after surface phosphating treatment, the color is milky white (color optional)
Liner material: Clean T1.2mm SUS stainless steel/mirror stainless steel
Movable shelves: Equipped with three-layer load-bearing mesh panels or stainless steel trays, which can be increased according to actual needs
Insulation material: high temperature resistant aluminum silicate insulation cotton or high density high temperature resistant glass fiber, good thermal insulation performance
★Gate structure:
Quantity: Single door
Thickness: Aluminum silicate insulation cotton (high temperature cotton), local reinforcement installation hinges and handles
Door buckle: Tightening pressure handle, beautiful appearance, aluminum silicate fiber sealing cotton strip, good sealing and long service life
★Circulatory system:
Circulation system: Forced horizontal air circulation. The air source is driven by the circulation motor to drive the fan wheel through the electric heater, and the hot air is sent to the inside of the oven through the air duct. The hot air after use is sucked into the air duct as a source for recirculation and heating, thereby reducing energy loss and ensuring the temperature uniformity in the oven. When the door opening and closing action causes disturbances, the air circulation system can quickly restore the operating state temperature value
★Intake/Exhaust:
Intake system: Quantity 1, φ30-60mm
Exhaust system: Quantity 1, φ30-60mm
★Heating control:
Heating device: Stainless steel U-shaped infrared heater, fast heating speed, service life up to 50,000 hours
Power parameters: Power 1-8KW, three groups of heaters evenly distributed
★Electrical system:
Temperature control device: intelligent LCD screen high-precision temperature control system (multi-stage program control optional), with PID self-tuning, automatic constant temperature and other functions
Over-temperature protection: Built-in over-temperature protection device, which will automatically alarm and cut off heating when the temperature exceeds the set upper limit.
Temperature measuring device: using standard PT100 temperature sensor, accurate temperature measurement, stable and reliable
Timing device: built-in automatic timer, 0-99.99 hours setting, can preset baking time
Alarm device: After the constant temperature time is over, the heating will be automatically cut off and the sound and light alarm will be given
Power supply voltage: standard 380V/50Hz (optional 220V)
Safety device: leakage, short circuit, overload protection; blower motor overload and phase loss protection
Solid-state output: SSR contactless relay module, high sensitivity
★Optional accessories: 1. Visual window 2. In-box lighting 3. Multi-point inspection instrument 4. Temperature recorder 5. Forced exhaust 6. Air volume adjustment 7. Thousand-layer rack or trolley 8. Clean filter 9. Electromagnetic lock, etc.
Smart Oven-AMST Model Specification Table
key word：Double door dual control oven
